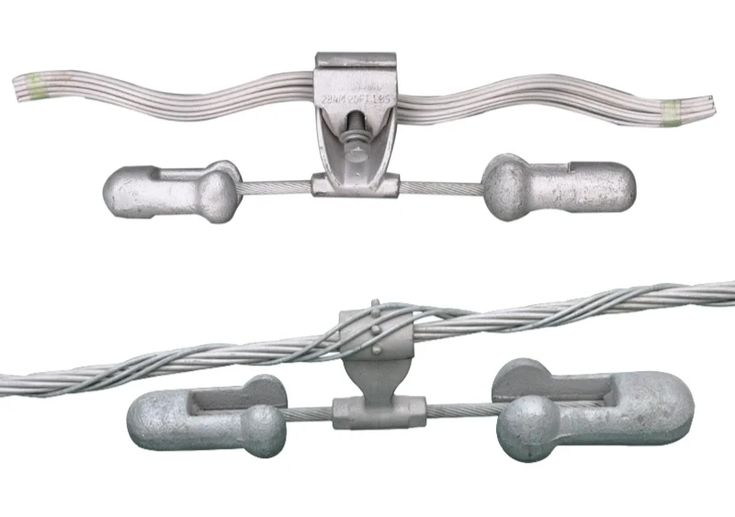

A Stockbridge damper is a device used on overhead power lines and transmission cables to reduce vibrations caused by wind and other factors. These vibrations can lead to metal fatigue, wear, and eventual failure of the conductors. The damper consists of a short length of steel cable, two metallic weights, and a clamp that attaches it to the main conductor. Vibrations from the wind are transmitted through the conductor to the damper. The Stockbridge dampers absorb and dissipates the vibrational energy, converts it into heat through friction, and prevents damage to the cable and attachments. It is important to use these dampers as they protect line integrity and prevent costly outages and maintenance. They function globally in both high-voltage and medium-voltage lines. The damper functions in long transmission spans, near suspension points, and river crossings or mountainous areas.
The working of a Stockbridge damper

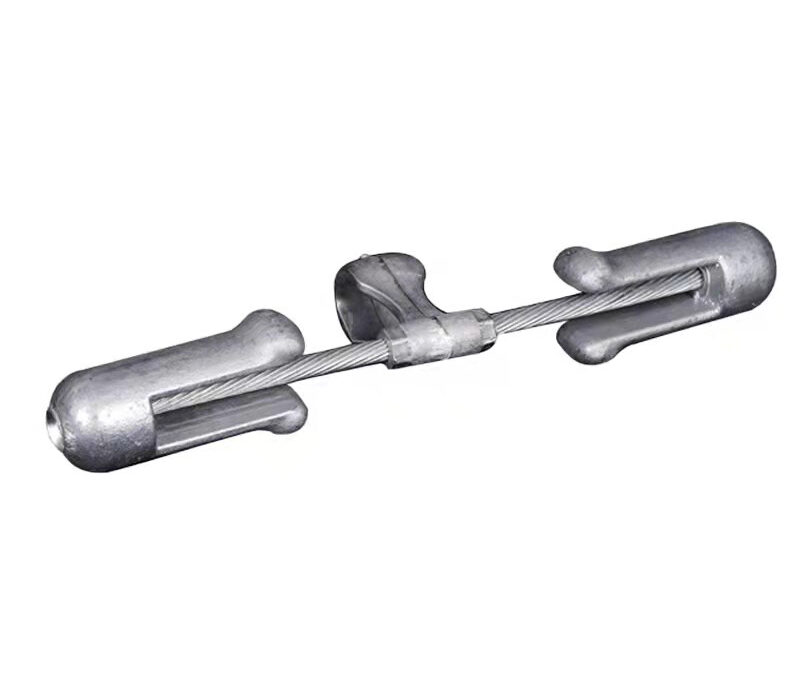

Stockbridge Damper

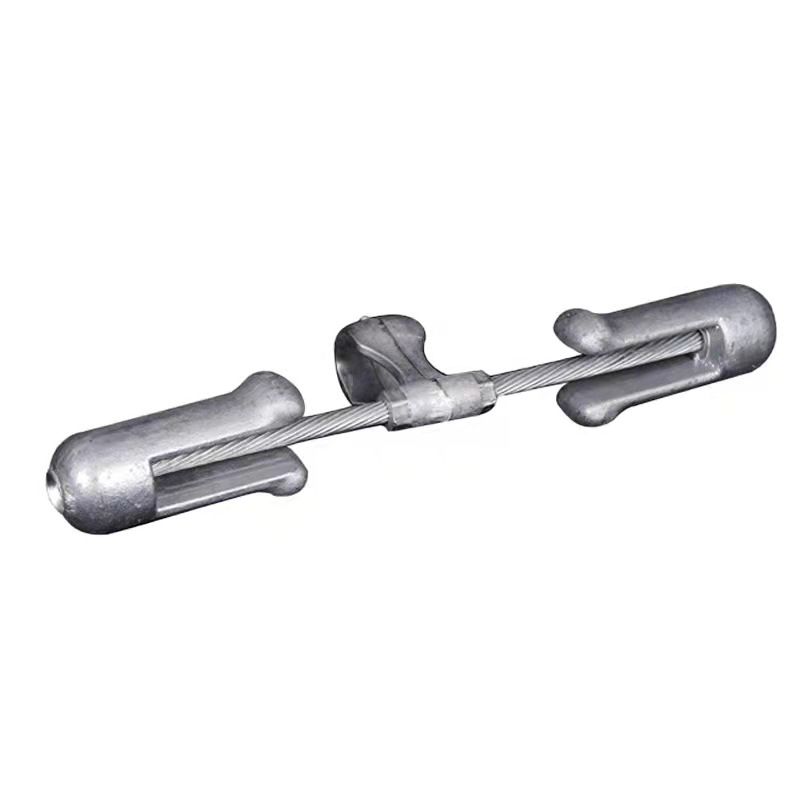

The Stockbridge damper is a mechanical vibration control device used in overhead power line construction to mitigate aeolian vibrations caused by wind. It consists of a short length of stranded steel cable with two weighted end masses, clamped to the conductor. The damper dissipates vibrational energy through flexing and friction, thereby preventing conductor fatigue, damage, and failure.
Key Features:
- Anti-vibration performance: Effectively suppresses aeolian vibrations and reduces stress on conductors.
- Corrosion-resistant materials: Made from galvanized steel or aluminum alloy for long-term outdoor durability.
- Universal compatibility: Designed for use on a wide range of conductor sizes and tensions.
- Tool-less installation: Can be installed with minimal tools and labor in field conditions.
- Optimized weight distribution: Counterweights tuned for specific frequency damping ranges.
- Maintenance-free: Long operational lifespan with no lubrication or servicing required.

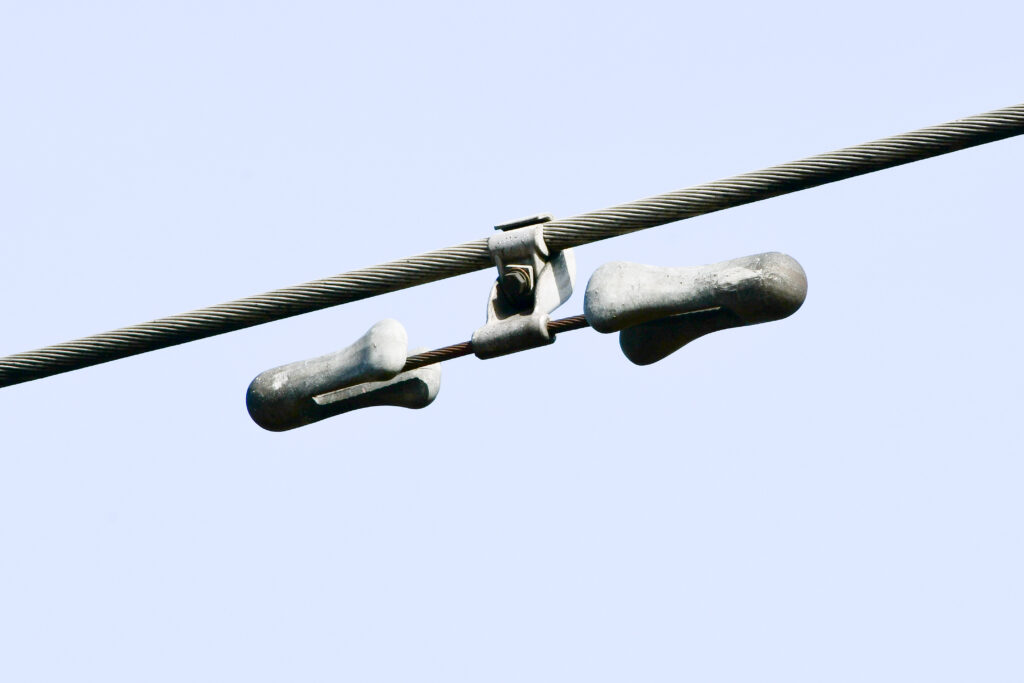

The Stockbridge damper maintains the structural integrity and performance of overhead power lines. Overhead power lines face environmental forces that cause the lines to vibrate in a vertical plane. This produces low-amplitude, high-frequency oscillations, aeolian vibrations. The damper consists of a messenger cable that connects the device to the conductor, two weights, and a clamp in the center that attaches the damper to the power line. When the power line vibrates, the clamped part of the conductor transmits the vibration energy to the damper. The masses at either end of the messenger cable begin to oscillate. The damper’s asymmetrical design ensures that it can respond to a range of vibration frequencies. As the masses move, they twist and flex the messenger cable. This mechanical movement converts kinetic energy into heat through internal friction within the damper’s strand and at the clamp.
The importance of using the dampers in the overhead power lines
The Stockbridge damper is designed to protect conductors from mechanical damage caused by wind-induced vibrations. It ensures the longevity, reliability, and safety of power transmission systems. The dampers provide aeolian vibration damage protection, protect line components, ensure grid reliability, reduce maintenance and operating costs, and support modern power infrastructure. The Stockbridge damper plays a critical role in reducing vibration and protecting infrastructure. It is an essential tool for enhancing grid stability, protecting investment in infrastructure, and supporting the transition to sustainable energy. Stockbridge dampers are strategically placed to manage vibration risks that make them essential in challenging environmental conditions. Additionally, it is important to select the right dampers to ensure high performance and reliability in overhead power lines.

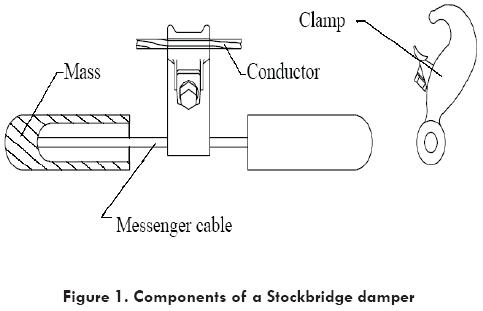

Components of the Stockbridge damper
Stockbridge dampers are devices engineered to absorb and dissipate wind-induced vibrations in overhead power lines. Its design and performance depend on a few components and features that allow it to target a wide range of vibration frequencies. These features include
- Messenger cable—this is the central flexible part of the damper, usually made from galvanized steel or aluminum-clad steel. It connects the damper to the conductor and allows flexing and twisting. It converts vibration energy into heat through internal friction.
- Weights—this consists of cast iron with low cost and high density and is prone to rust. It also includes lead-filled steel shells that have excellent damping due to lead’s high density. It is also from zinc-aluminum alloys that are corrosion-resistant and lighter than steel but less common due to cost.
- End masses—these are metal weights attached at both ends of the messenger cable. They oscillate in response to conductor vibration to help generate opposing movement that reduces the amplitude of the original vibration. The mass size, shape, and placement influence the resonance frequency change.
- Central clamp—the clamp secures the damper to the conductor at a specific location. It ensures that vibration is effectively transferred from the conductor into the damper.
- Damping mechanisms—this mechanism bends and twists the messenger cable to create internal stress. This converts mechanical energy into heat to effectively dissipate it. High-performance dampers turn to specific vibration modes and may include variable strand stiffness to handle complex vibration profiles.
- Corrosion-resistant materials—the damper faces extreme outdoor environments like rain, UV, salt spray, and pollutants. Most campers are from galvanized or stainless steel, aluminum alloys, or composite materials.
- Compact and durable design—Stockbridge dampers have long-term performance and need no power source or maintenance.
Types of Stockbridge dampers

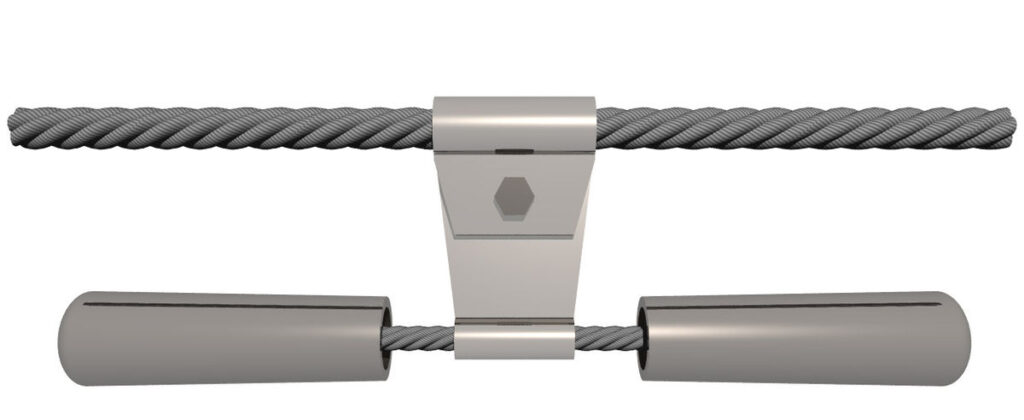

Standard Stockbridge damper
Its design features two identical weights mounted at equal distances from the central clamp on a stranded messenger cable. It functions on standard transmission and distribution lines without moderate span lengths and uniform vibration frequencies.
Asymmetrical Stockbridge damper
This features unequal weight sizes or different arm lengths on either side of the clamp. It functions in long-span lines or areas with variable wind patterns.
Twin Stockbridge damper
Its design includes two Stockbridge dampers installed in parallel on the same conductor span. It is functional where vibration risk is severe, such as extra-long spans, river crossings, or critical infrastructure zones.
Tuned Stockbridge damper
The dampers are custom-engineered and precision-tuned to specific vibration frequencies of the conductor system. They serve in critical infrastructure, offshore installations, or where conductor properties demand tailored solutions.

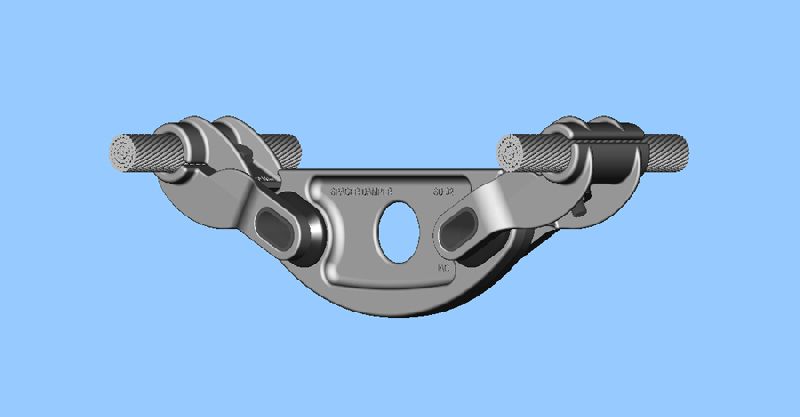

Spacer dampers
These combine the functions of a spacer and a Stockbridge damper in one unit. It is essential for bundled conductor systems. It controls sub-span oscillations, galloping, and aeolian vibrations. They prevent conductors from clashing or twisting.

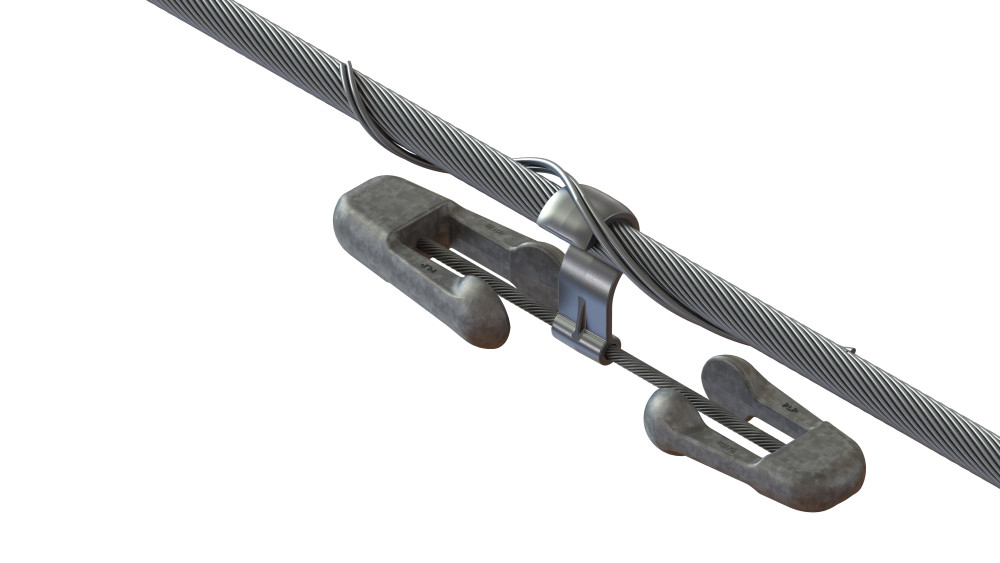

Armor rod-integrated damper
This damper combines a Stockbridge damper with armor rods for extra conductor protection. It functions in regions with high wind or galloping conductors. The damper prevents conductor wear at suspension points and reduces the need for separate hardware.
Design and materials for Stockbridge dampers
The right design and materials of a Stockbridge damper are crucial to its function in mitigating wind-induced vibrations in overhead power lines. The design of the Stockbridge damper features messenger cable, end masses, clamp assembly, and optional enhancements. The materials used provide strength, flexibility, and durability. The damper is able to perform reliably in harsh outdoor conditions for decades without requiring maintenance. It is crucial to consider temperature extremes, pollution, humidity, and altitude when selecting the materials. Key materials used include
- Messenger cable—this is usually made of galvanized steel for durability and stiffness or aluminum-clad steel for enhanced corrosion resistance with lighter weight. These materials must be fatigue-resistant and capable of flexing millions of cycles without breaking.
- End masses—the cast is from galvanized cast iron, aluminum alloys, steel, or stainless steel in high-end designs. It helps the damper resist impact, corrosion, and deformation.
- Clamp assembly—this is from aluminum alloy and hot-dip galvanized steel. These materials are lightweight and corrosion-resistant. It also includes elastomer or polymer inserts to prevent conductor damage.
- Protective coatings—all metallic parts have treatments with galvanization, powder coating, or anodizing to protect against UV radiation, salt spray, acid rain, and industrial pollutants.
Stockbridge dampers in renewable energy projects
Stockbridge dampers play a crucial role in the success and reliability of renewable energy projects. Expansion of renewable energy generation is often in remote, offshore, or high-wind areas. This demands the use of Stockbridge dampers to ensure reliable and efficient power delivery. Here are the roles of Stockbridge dampers in renewable energy expansion projects.
- Protecting transmission infrastructure in wind-exposed areas—renewable energy installations are often in areas with high speeds. Wind causes aeolian vibrations in the overhead power lines connecting the facilities to the grid. Stockbridge dampers absorb and dissipate the energy to safeguard both the conductors and support structures. This results in increased system reliability and reduced maintenance costs in wind-prone renewable installations.
- Enabling offshore and coastal wind power—overhead cables on platforms and transition structures face constant high-speed winds. Stockbridge dampers are corrosion-resistant and have custom damping profiles to reduce vibrations. This enhances safety and performance in harsh marine environments.
- Ensuring grid stability in remote solar installations—large-scale solar farms are mostly in isolated or arid regions. The transmission lines face thermal stress due to high temperatures and persistent wind exposure leading to vibrations. Using Stockbridge dampers protects against mechanical wear, maintains conductor alignment, and reduces the risk of unexpected outages. This leads to stable power export from remote solar projects to the main grid.
- Supporting decentralized renewable grids—transmission systems are more complex as countries invest in decentralized and hybrid renewable grids. Stockbridge dampers help maintain structural uniformity, reduce vibrations, and protect key interconnection points. This results in more resilient, scalable, and reliable power infrastructure.
- Reducing maintenance and extending lifespan—Stockbridge dampers in renewable energy provide low-maintenance designs. This is because they protect against fatigue failures and can last 30+ years. This results in lower operational costs and longer system uptime for clean energy providers.
Best practices for Stockbridge dampers
Proper installation of Stockbridge dampers is crucial to help maximize their effectiveness in controlling aeolian vibrations on overhead power lines. This is especially as they face conditions such as wind, UV radiation, and temperature variations. Poor placement or installation can reduce the damper’s effectiveness or lead to premature line damage. Best practices include proper placement and positioning, selecting the right damper type, using approved tools, considering environmental conditions, performing regular inspections, and using vibration modeling during design. Following these practices can help ensure their effectiveness and reliability in overhead power lines.
