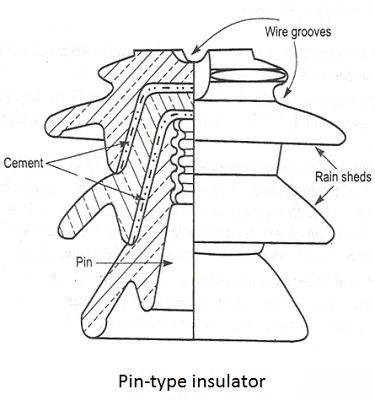

A pin insulator is a type of electrical insulator used in overhead power line construction to support and separate conductors. It prevents the undesired flow of currents to the ground and mounts directly on a pole using a metal pin. Its primary function in overhead power distribution systems is to support and isolate electrical conductors from the supporting structure. The main functions include supporting conductors at various voltage levels, insulating live wires from the grounded support structure, and resisting environmental stress. A typical pin insulator has a head groove to hold the conductor, ribs to increase the creepage distance, and a metallic base fitting to screw onto the support pin. Electric current flows through the conductor held in the insulator’s top groove. The body prevents leakage current from traveling from the conductor to the grounded pole.
Working principle of a pin insulator

The working of the pin insulator is dependent on its ability to support a live conductor mechanically and insulate it electrically from the pole. When electricity flows through an overhead line, the conductor is at high voltage while the supporting pole is grounded. Lack of an insulator causes short circuits, power loss, and electrical hazards. It acts as a dielectric barrier that prevents undesired current flow. The conductor clamps onto the top groove of the insulator and secured with binding wire. The insulator mounts on a steel or iron pin, which bolts to the cross-arm of the pole. The electrical current flows along the conductor while the insulator blocks any current from passing through to the grounded pole. Pin insulators have many ridges to increase the surface distance between the energized conductor and the grounded hardware. The extended surface path helps prevent flashover during rainy conditions.

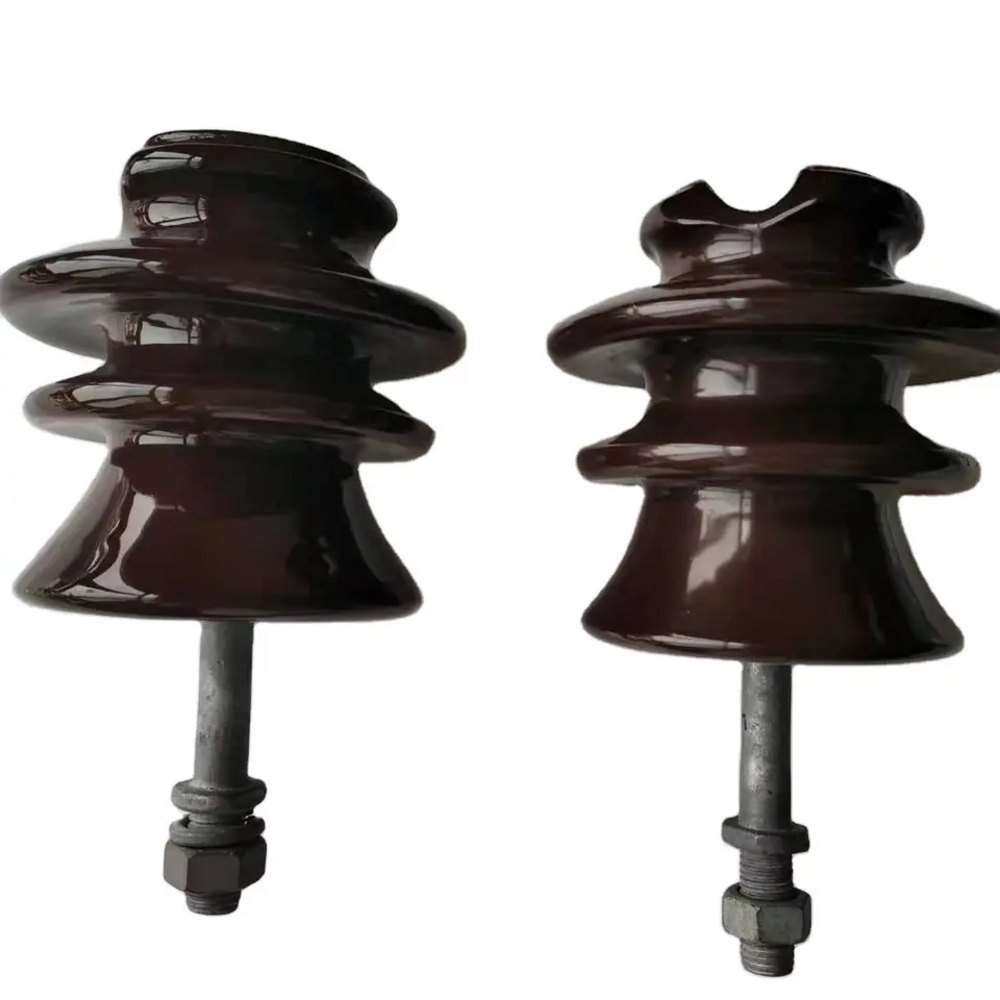

Porcelain Pin Insulator
Pin Insulators are essential components in overhead power line construction, designed to support and insulate conductors on distribution poles. Mounted on a pin at the crossarm, they provide a secure interface between energized lines and grounded structures, ensuring safe and efficient power transmission at medium voltages.
Key Features:
- High Dielectric Strength: Effectively insulates conductors up to 33 kV.
- Robust Material Options: Available in porcelain, glass, or polymer for durability in harsh environments.
- Mechanical Stability: Resists conductor tension, wind loading, and mechanical vibrations.
- Corrosion and Weather Resistant: Performs reliably under UV exposure, moisture, and pollution.
- Universal Compatibility: Fits standard pin designs for easy installation and maintenance.
- Low Maintenance: Long service life with minimal need for inspection or replacement.
Importance of a pin insulator in overhead power lines
A pin insulator ensures the safety, efficiency, and reliability of overhead power lines, especially in low- to medium-voltage systems up to 33 kV. It also prevents energy loss and protects the infrastructure from electrical and environmental stress. Pin insulators provide high electrical resistance and prevent leakage of current from the conductor to the pole. It protects the entire power distribution system from dangerous ground faults. Pin insulators also support the conductor physically and hold it in position under mechanical stress. Mechanical stress may arise from wind pressure, conductor weight, vibrations, and ice loading in cold climates. Pin insulators have ribs or ridges to increase creepage distance, which helps them maintain insulation even in rainy, coastal areas or dusty zones. High-quality pin insulators reduce the risk of electrocution, protect maintenance crews, and prevent fires or faults in the grid.
Crucial components of a pin insulator
A pin insulator is designed to deliver electrical insulation, mechanical strength, and environmental resilience in overhead power lines. Here are the key features of a pin insulator.

- High dielectric strength—the insulators are from porcelain, glass, or polymer materials with excellent insulating properties. It prevents electrical current from leaking from the conductor to the pole. This strength ensures safe current flow and reduces power losses.
- Robust mechanical strength—this supports tensile and compressive loads from conductors and is able to withstand mechanical stress from wind, ice, or vibration. It helps maintain conductor stability and alignment under tough conditions.
- Ribbed design—this includes many sheds to increase the creepage distance. It also helps reduce the risk of surface leakage and flashover in wet environments. This design enhances insulation performance in rain, fog, and industrial zones.
- Mounted with a galvanized steel pin—fitted onto poles using a metal pin and ensures a rigid and secure connection. The insulator is often cemented or threaded to the pin for added grip. It makes the insulator easy to install, replace, and maintain.
- Single-piece or multi-part construction—this is available in one-part, two-part, or three-part designs depending on voltage rating. One-piece is for voltage up to 11 kV and multipiece up to 33 kV. It is customizable for various system requirements and voltage levels.
- Weather and UV resistance—porcelain and polymer insulators are able to resist UV radiation, extreme temperatures, moisture absorption, and salt or chemical pollution. This ensures long-term durability in outdoor environments.
- Lightweight—newer composite pin insulators are lighter than porcelain, which makes installation easier. It may come with anti-tracking and anti-fog coatings that are ideal for modern grid upgrades and remote installations.
Types of pin insulators

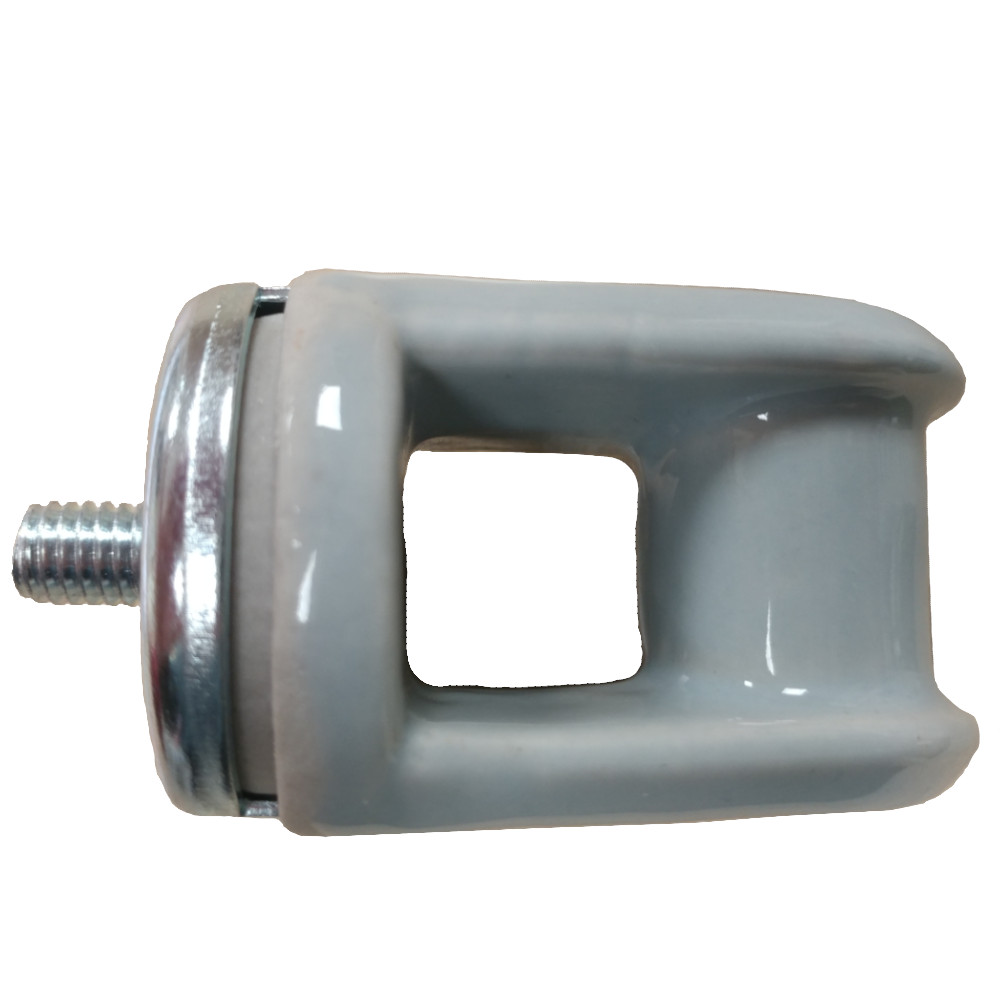

Single-piece pin insulator

This is a solid, one-unit design made from porcelain or glass and most used for systems up to 11 kV. It features simple construction, easy installation and maintenance, and low cost. It is ideal for rural electrification and short-span distribution lines.

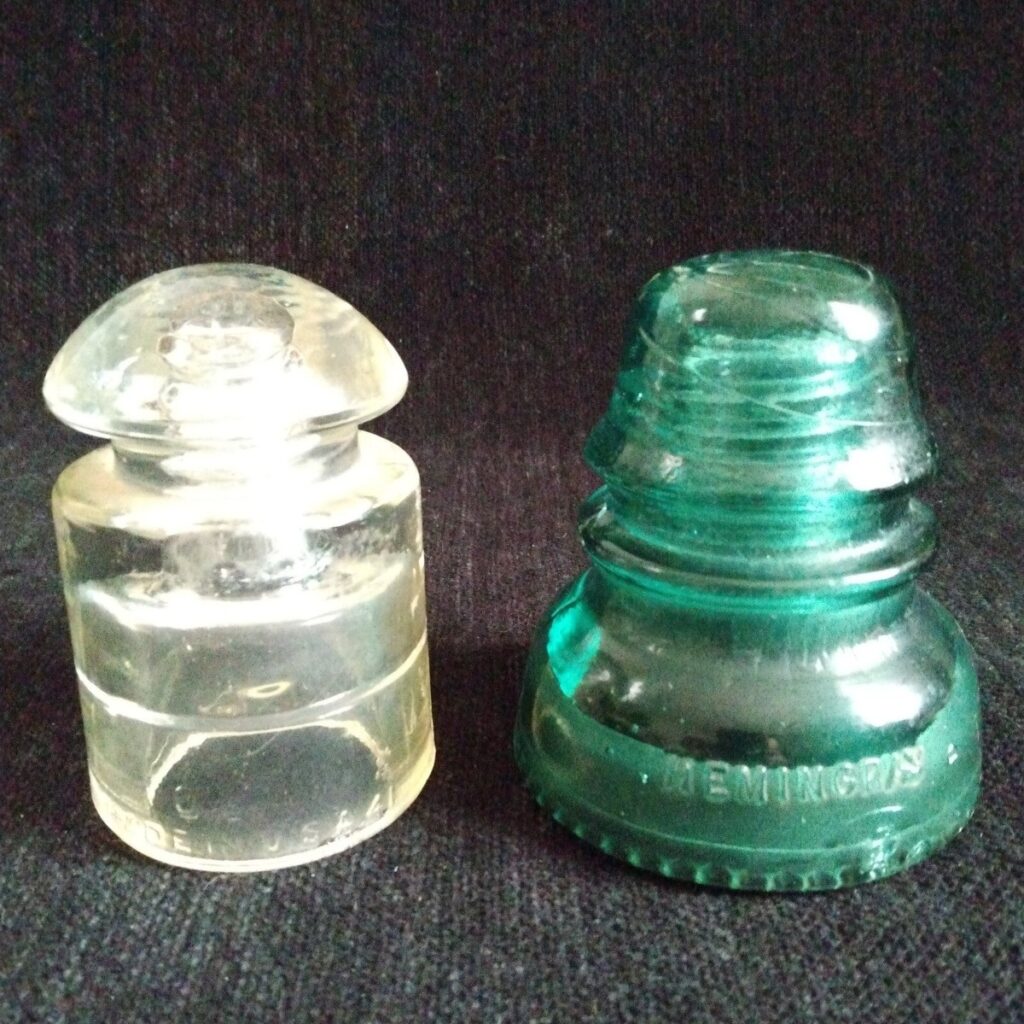

Two-piece pin insulator

This insulator consists of two parts joined with cement and can handle up to 22 kV. It is enhanced with mechanical and electrical performance and slightly longer creepage than single-piece. It is best for semi-urban areas with moderate pollution and distribution lines in hilly or windy regions.
Three-piece pin insulator

This one consists of three parts and is ideal for up to 33 kV systems. It can absorb more mechanical stress and contamination. It features high mechanical strength, excellent performance, and greater creepage distance. This insulator is ideal for long-span lines, coastal zones, and high-altitude installations.

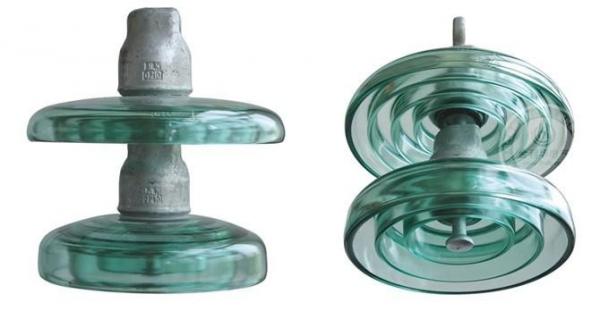

Glass pin insulators

These are from toughened or tempered glass, have high visibility for defects, and have strong dielectric properties. It is ideal for visual inspection and cleaner environments.

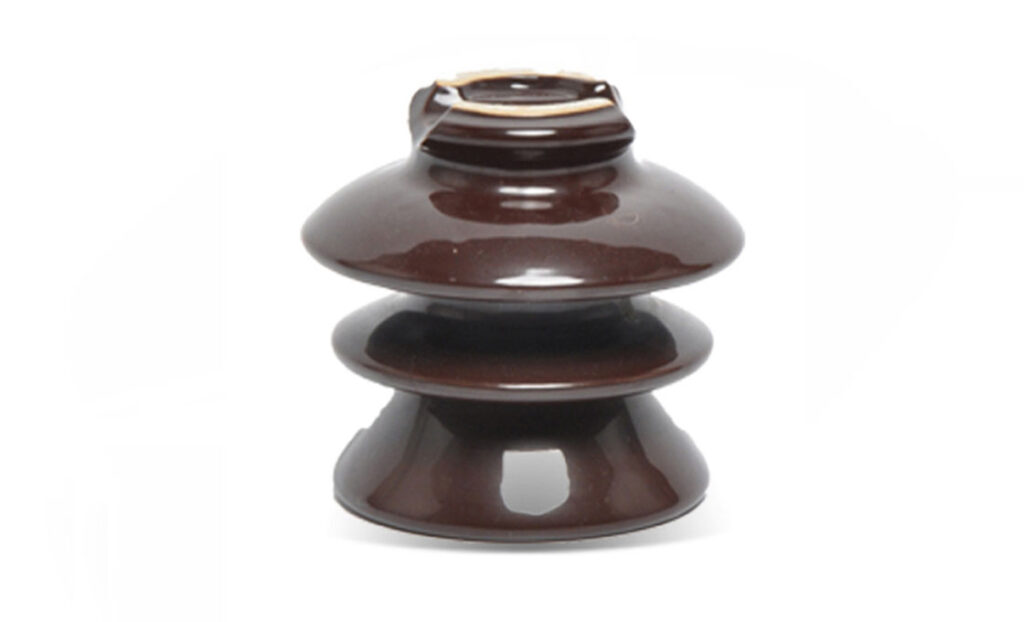

Porcelain pin insulators

These are traditional and used for high mechanical and thermal resistance. It may be glazed to resist water absorption and dust accumulation. These insulators are ideal for harsh weather and high mechanical load areas.
Design and materials of pin insulators
Pin insulators are able to support and insulate electrical conductors from grounded poles. Its performance depends on design and materials engineered to withstand mechanical stress, electrical load, and environmental conditions. Selecting the right materials and design for the insulators is vital to ensure reliable electrical insulation, mechanical integrity, and long-term durability. Each type is crucial to specific grid conditions, voltage levels, and environmental challenges. Its design includes a top groove, sheds, a metallic base, and adhesive joints. The materials include:

- Porcelain—this is the most used and traditionally preferred material, composed of kaolin, quartz, and feldspar. It features a glazed surface that resists moisture absorption, pollution, and UV rays. It provides high mechanical and dielectric strength, long service, and good performance in extreme climates.
- Toughened glass—this is from annealed and heat-treated glass that provides high dielectric strength and transparency for easy visual inspection. It shatters easily on failure, which makes faults easy to detect. It is non-porous and easy to clean and maintains strength under impacts.
- Polymer or composite materials—this is constructed from a fiberglass-reinforced core with a silicone rubber housing. It is a modern alternative to ceramic insulators. It is lightweight and resistant to tracing, erosion, and UV. It provides excellent performance in polluted, coastal, and industrial zones. Porcelain pin insulators are popular for upgrading aging infrastructure and remote area installations.
Pin insulators in renewable energy projects
There is an increasing need for efficient and reliable transmission infrastructure to support solar farms, wind turbines, and micro-hydro grids. Pin insulators ensure that electricity generated from renewable sources is sent safely and efficiently to homes, industries, and storage facilities. Their functions in renewable energy include
- Electrical insulation between conductors and poles—pin insulators prevent the flow of current from live conductors to the grounded supporting structure. Proper insulation in remote solar farms or wind installations is crucial to avoid leakage, flashovers, and grounding faults.
- Mechanical support for conductors—pin insulators support overhead conductors under mechanical loads like wind pressure, vibration from turbines, or thermal expansion. The mechanical strength of the insulators keeps the conductors aligned and prevents sagging. This enhances the structural stability of transmission lines from generation to grid.
- Resistance to environmental stressors—pin insulators have ribs to increase creepage distance and reduce flashover during rain, fog, salt spray, or dust storms. They ensure uninterrupted energy transmission despite challenging conditions.
- Integration with hybrid energy systems—pin insulators are compatible with hybrid systems that combine solar, wind, diesel backup, or battery storage. The insulators can be quickly installed and adapted to different layouts, which makes them ideal for flexible infrastructure. They also support modular and expandable grid architectures in renewable setups.

Industry best practices for pin insulators used in overhead power lines
High-quality pin insulators ensure safety, efficiency, and long-term performance of overhead electrical distribution systems. It is essential to follow best practices during selection, installation, and maintenance. These practices include choosing the right insulator for voltage level, the best materials for the environment, proper mounting hardware, adequate creepage, inspection for damage, ensuring correct conductor binding, and applying insulators with shed design for the environment. It is also crucial to put in place routine maintenance and cleaning to track for leakage current, discharge marks, and contamination buildup. Following best practices when using pin insulators is critical for reliable energy transmission, whether used in rural electrification or renewable energy systems.
